When the work has to be repeated several times it could be reasonable to use special equipment designed ad-hoc, only for that particular job.
It is the case of these red towers on boggies. After completed the assembly of a railway bridge, it is carried to the jobsite lifted by two towers with pulleys and winches. The convoy has a power generator on a wagon and it is pulled by a locomotive. When the new bridge is passing over the old bridge, the convoy stops and all the railroad traffic is suspended, so the hours count.

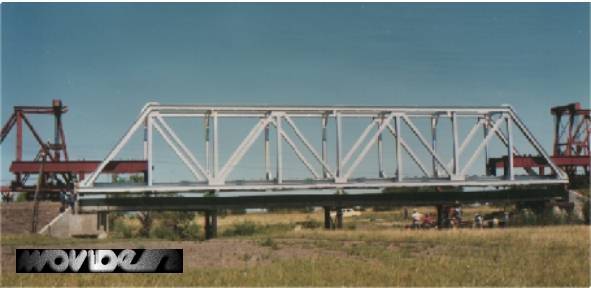

F.C.G.U. Pcia de Entre Ríos - Argentina. Railway bridge. L=33 m.
The towers also can lift the bridge when passing though other bridge during the transportation.

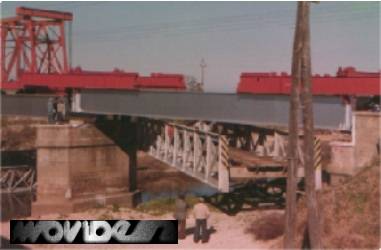

The hoisting towers can be also used along with a horizontal wheel so the old bridge can be rotated 90º .
F:C:G:B Línea F1. Argentina. - Span of each beam = 18m.
